Lamp NSP18VEx

Name: Lamp NSP18VEx
Brand: Vatra
Price: 1 UAH
Availability: PreOrder

NSP18ВЕх

Download the booklet (~0,27Mb, PDF)

Explosion-proof lighting fixture (protection level 1Ex) is used for general lighting highly explosive areas 1, 2 and fire risk classes; and also hazardous areas of zones 21, 22 e.g industrial areas as oil-refining, gas chemical, woodwork and other industries.

Technical specifications

Type of explosion protection	в Україні: 1ExdeIICT3 1ExdeIICT4 1ExdeIICТ5 1ExdeIICТ6, на експорт в МС: 1Ex d e IIC T3 Gb 1Ex d e IIC T4 Gb 1Ex d e IIC Т5 Gb 1Ex d e IIC T6 Gb
Сlass of an explosive zone	1, 2, 21, 22
Protection class IEC (DSTU ІЕС 60598-1:2002)	Safety class I
Hazardous Area Classification	П-I, П-II
Power Factor Correction (PFC)	0,6 (ФСП)
Mech. impact protection code (GOST 30631-99)	М1
Input voltage (nominal), V	220 AC
IP Rating	IP65
Ambient temperature range	НСП: -40°С...+40°С (У1); -60°С...+40°С (ХЛ1)
Lamp Base Type	E27
Light source	fluorescent compact lamp with ECG, incandescent lamp
Power, W	60, 75, 100, 150, 200

PRICE REQUEST Download catalog (~10,45Mb, PDF)

Description ADVANTAGES Installation Order example Specifications Video Download

Explosion-proof luminaire of protection level 1Ex for general lighting of explosion-hazardous zones of classes 1, 2 and fire-hazardous zones of classes P-I, P-II in accordance with the marking on explosion protection, and may be used in zones 21, 22 subject to NPAOP 40.1.1.32-01 , "Rules of arrangement of electrical installations" and other normative documents, in premises and external installations in oil, oil refining, gas, chemical, cement, woodworking and other industries.

Specifications: VATRA_NSP18VEx.xls

two cable glands make possible quick transit connection to power supply line.

individual - on vertical screwed pipe G3/4-В (А1), vertical mounting profile (А2).
transit - on hook (В1), on horizontal (В2) or vertical (В3) mounting profile, on horizontal pipe with outer max Ø20mm (В4); on special request: on vertical screwed pipe G3/4-В (В5), on horizontal pipe with outer Ø25...28mm (В6 - В6.1), on horizontal surface (В7).

Network connection: transit or individual, cable Ø7...16mm (core section1,5...4mm²).

VATRA FSP18VЕх-32-421 NF1 decoding of modification:
1 figure •
1- individual, without reflector and protective grid
2- transit, without reflector and protective grid
3- individual, with protective grid
4- transit, with protective grid
5- individual, with reflector and protective grid
6- transit, with reflector and protective grid
7- individual, with reflector
8- transit, with reflecto
2 figure •
1- on screwed pipe G3/4-B, on vertical mounting profile
2- on hook, on vertical or horizontal mounting profile, on horizontal pipe
3 figure •
1- without power factor compensation

Lighting fixture type	Rated voltage, V	Protection level	Marking	Source of light	Lamp holder	Light distribution curve	Dimensions, DxH, mm	Weight, kg ±10%

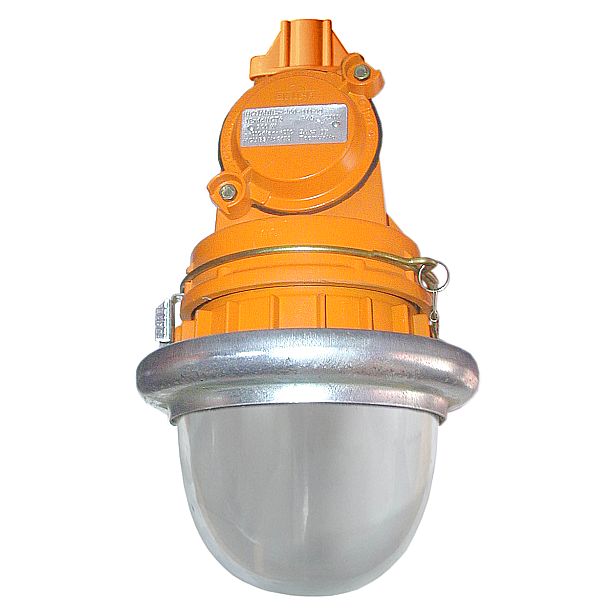

FSP18VEx-32-111 N3.1	230 AC	IP65	T6 / T80^O	СFL	E27	steady	205х435	5

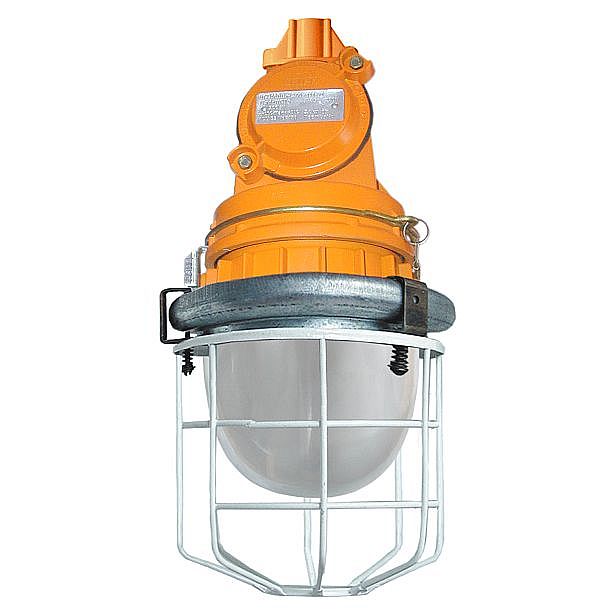

FSP18VEx-32-311 N3.1	230 AC	IP65	T6 / T80^O	СFL	E27	steady	205х445	5,6
FSP18VEx-32-511 N3.1	230 AC	IP65	T6 / T80^O	СFL	E27	steady	420х455	7,2

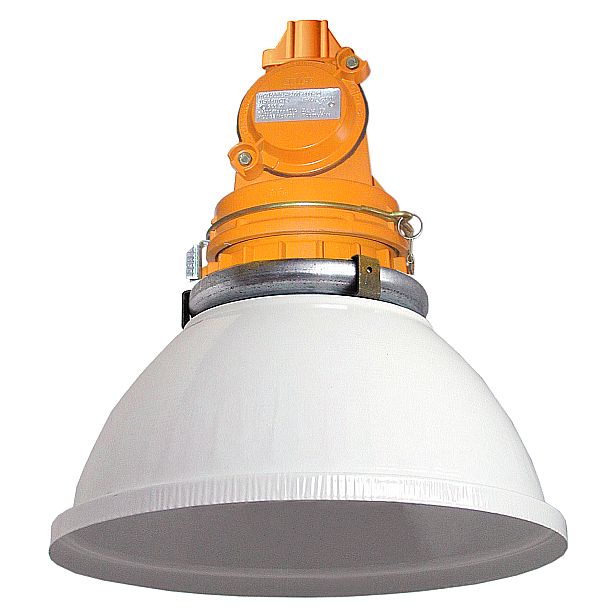

FSP18VEx-32-711 N3.1	230 AC	IP65	T6 / T80^O	СFL	E27	steady	420х455	6,5

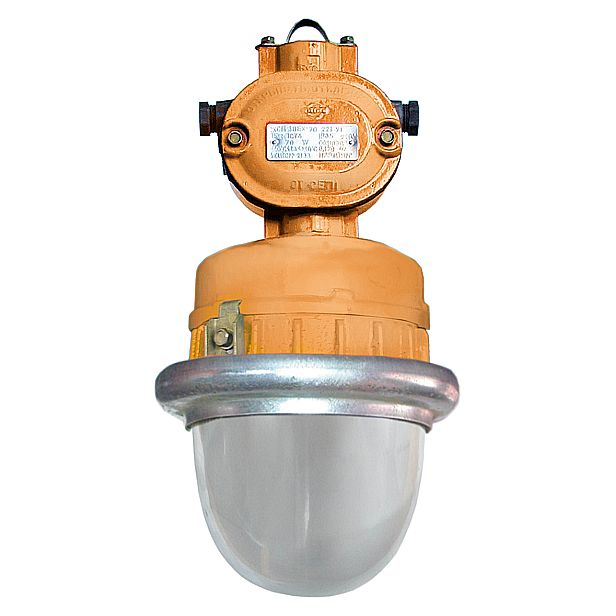

FSP18VEx-32-221 N3.1	230 AC	IP65	T6 / T80^O	СFL	E27	steady	205х430	5

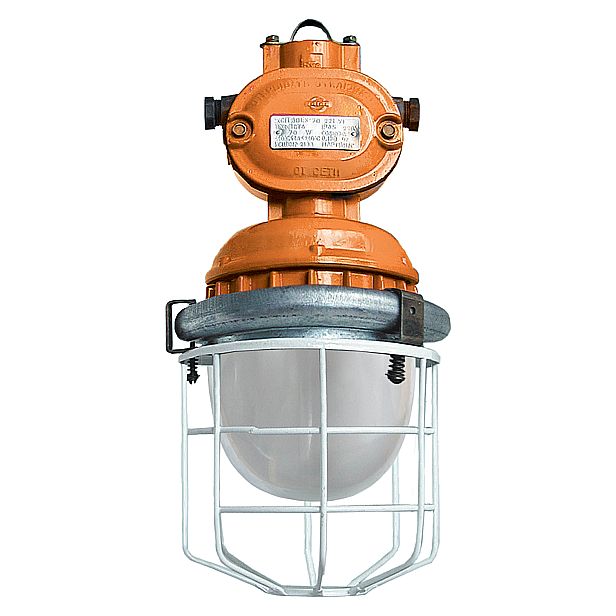

FSP18VEx-32-421 N3.1	230 AC	IP65	T6 / T80^O	СFL	E27	steady	205х445	5,6

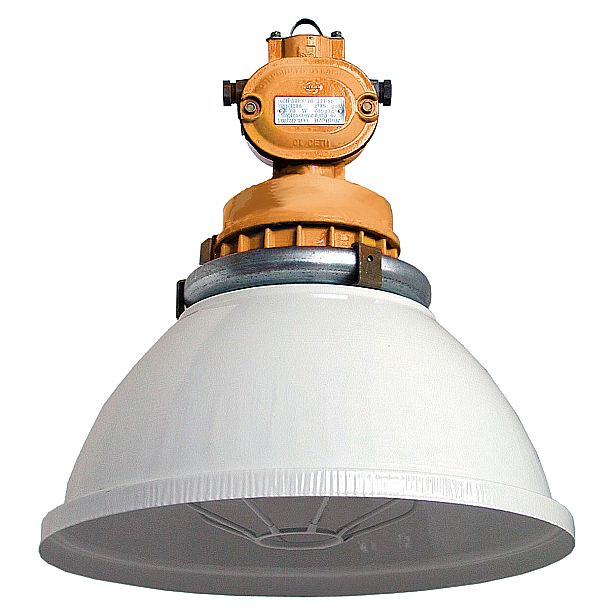

FSP18VEx-32-621 N3.1	230 AC	IP65	T6 / T80^O	СFL	E27	steady	420х455	7,2

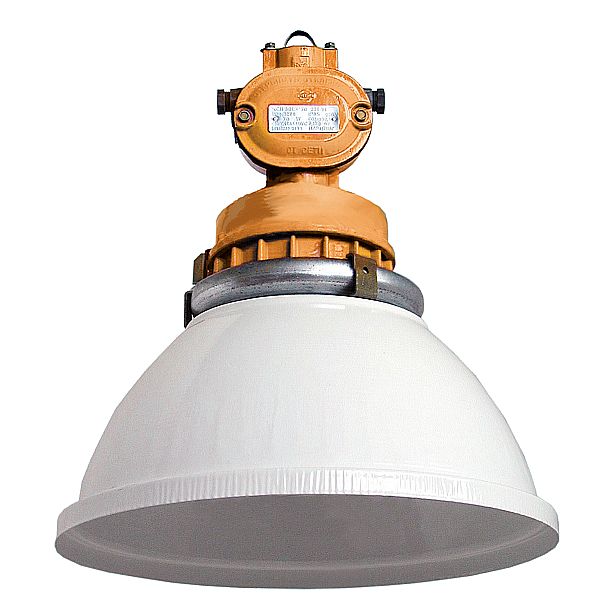

FSP18VEx-32-821 N3.1	230 AC	IP65	T6 / T80^O	СFL	E27	steady	420х455	6,5

VATRA-UKR_NSP18VEx.pdf (PDF, ~ 0,27 Mb)
