Lamp DO76ВЕХ (1EX)

Lamp DO76ВЕх
DO76ВЕХ (1EX)

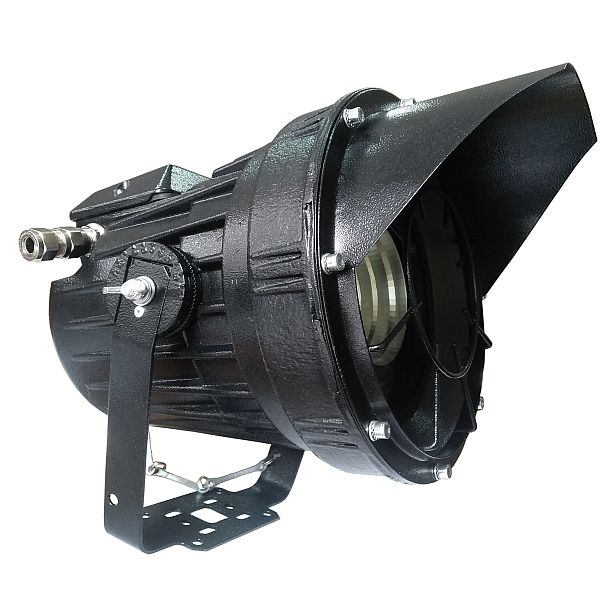

Explosion-proof LED floodlight K76VEH (1EX) for general lighting of explosion-hazardous zones of classes 1, 2 and fire-hazardous zones of classes P-I, P-II in accordance with the marking on explosion protection.
Technical specifications
Type of explosion protection в Україні: II 2G Ex db eb op is IIC T6 Gb II 2D Ex tb op is IIIC T80°С Db
Сlass of an explosive zone 1, 2, 21, 22
Protection class IEC (DSTU ІЕС 60598-1:2002) Safety class I
Hazardous Area Classification П-I, П-II
Power Factor Correction (PFC) 0,95
Correlated Color Temp (ССТ) 4000К (3800...4200К)
IP Rating IР66
Ambient temperature range -40°С...+40°С (У1)
Light source LEDs
Power, W 20, 40, 60, 80
PRICE REQUEST Download catalog  (~10,45Mb, PDF)
Description

Explosion-proof LED floodlight for general lighting of explosion-hazardous zones of classes 1, 2 and fire-hazardous zones of classes P-I, P-II in accordance with the marking on explosion protection, and its use is allowed in zones 21, 22 subject to the requirements of NPAOP 40.1.1.32-01, "Rules of arrangement of electrical installations" and other normative documents, in premises and external installations in oil, oil refining, gas, chemical, cement, woodworking and other industries.
