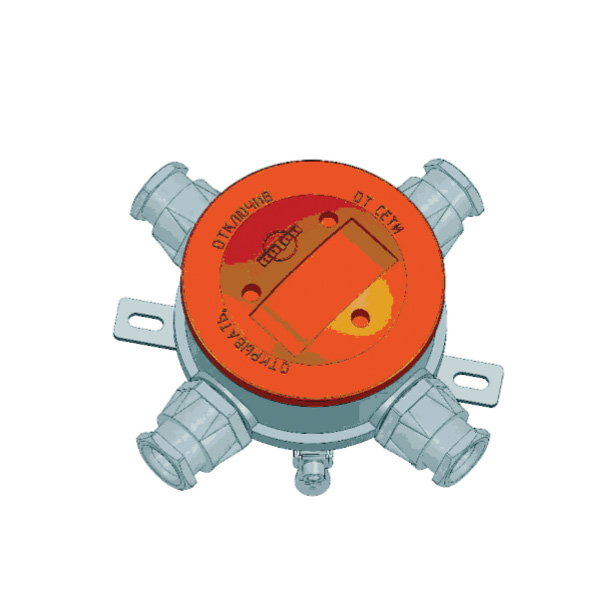

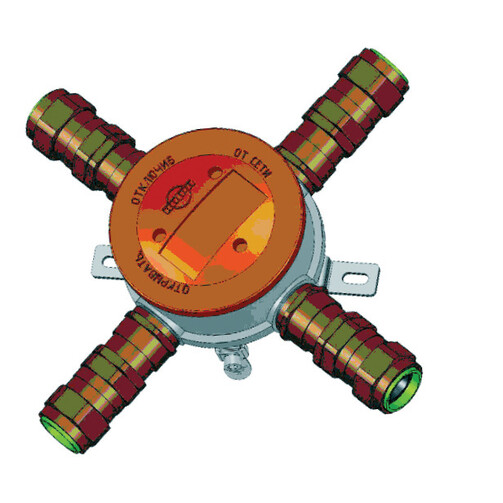

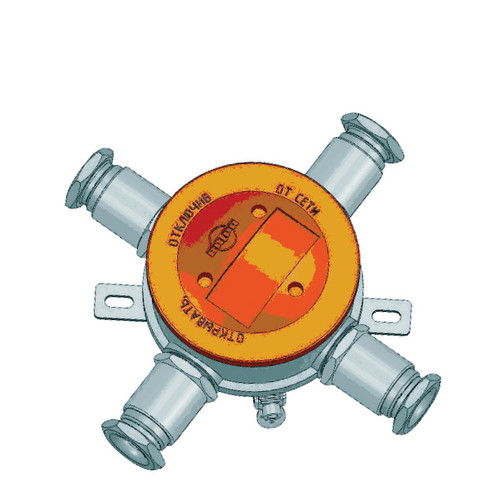

Explosion-proof branch-joint box for joining and branching cable wiring (inside/outside) is used in highly explosive areas 1, 2 and fire risk classes e.g industrial areas as oil-refining, gas chemical, woodwork and other industries.
Technical specifications
Type of explosion protection 1ExdIICT6; 1ExeIIT5
Сlass of an explosive zone 1, 2
Protection class IEC (DSTU ІЕС 60598-1:2002) Safety class I
Hazardous Area Classification П-I, П-II
Mech. impact protection code (GOST 30631-99) М1, М3, М6
Input voltage (nominal), V 220 AC, 600 АС
IP Rating IР66
Ambient temperature range -40°С...+40°С (У1); -60°С...+40°С (УХЛ1, ХЛ1)
Explosion-proof branch-joint box for joining and branching cable wiring (inside/outside) is used in highly explosive areas 1, 2 and fire risk classes e.g industrial areas as oil-refining, gas chemical, woodwork and other industries.
  • different modifications (quantity of cable glands and protection levels 1Ех or 2Ех) provide wide usage;
  • conductive parts are put into slot with high mechanical durability;
  • work at humidity 98%;
  • high protection level.
on supporting surface using screws, bolts or threaded rods M6; using mounting panel.
Network connection:
  • armored cable Ø14...22mm
  • non-armored cable Ø8...16mm
Core section :
  • 0,1...2,5mm2 for screwless terminal block
  • 1,5...4,5mm2 for screwl terminal block
VATRA KSRV01UЕх-121 NF1 decoding of modification:
1 figure • quantity of cable glands:
1- 4pcs.
2- 2pcs.
3- 3pcs.


2 figure • type of cable gland:
1- for non-armored cable
2- for armored cable


3 figure • type of terminal block:
1- screwless 5х4
2- screw 2х2



Type of box






Marking

Rated voltage, V

Current intensity, max, А

Cross-sectional area of cable, not more mm2

Quantity of cable glands, pcs.

Quantity and type of terminal blocks

Dimensions, LxWxH, mm

Weight, kg

±10%

KSRV01UЕх-111 NF1

2.1

T6/80oC

600

20

2,5

4

5х4

235x235x86

1,3

KSRV01UЕх -121 NF1

1.1

T6/80oC

600

20

2,5

4

5х4

300x300x86

1,8

KSRV01UЕх -311 NF1

2.2

T6/80oC

600

20

2,5

3

5х4

235x178x86

1,25

KSRV01UЕх -321 NF1

1.2

T6/80oC

600

20

2,5

3

5х4

300x210x86

1,7

KSRV01UЕх -211 NF1

2.3

T6/80oC

600

20

2,5

2

5х4

235x119x86

1,2

KSRV01UЕх -221 NF1

1.3

T6/80oC

600

20

2,5

2

5х4

300x119x86

1,6

KSRV01UЕх -212 NF1

2.3

T6/80oC

220

16

4

2

2х2

235x119x86

1,2

KSRV01UЕх -222 NF1

1.3

T6/80oC

220

16

4

2

2х2

300x119x86

1,6



KSRV02UЕх-111 N1, NF1

3.1

4.1



T5/80oC



600



20



2,5



4



5х4



205x205x86



1

KSRV02UЕх-311 N1, NF1

3.2

4.2

T5/80oC

600

20

2,5

3

5х4

205x164x86

0,95

KSRV02UЕх-211 N1, NF1

3.3

4.3

T5/80oC

600

20

2,5

2

5х4

205x119x86

0,9

KSRV02UЕх-212 N1, NF1

3.3

4.3

T5/80oC

220

16

4

2

2х2

205x119x86

0,9
