Lamp LSR01 with LED

LSR01 with LED
Explosion-proof LED mining lighting fixture, stationary or movable. Marking РВ 1В (РВ ЕхdI) means using in pits, mines and other premises.
Technical specifications
Type of explosion protection в Україні: PB 1B, на експорт в МС: РВ Ex d I Mb
Protection class IEC (DSTU ІЕС 60598-1:2002) Safety class I
Power Factor Correction (PFC) 0,9
Correlated Color Temp (ССТ) 4000К
Mech. impact protection code (GOST 30631-99) М1
Input voltage (nominal), V 36 AC, 127 AC, 220 AC
IP Rating IP65
Ambient temperature range -20°С...+35°С (У5)
Lamp Base Type G13
Light source LED bulb
Power, W 16

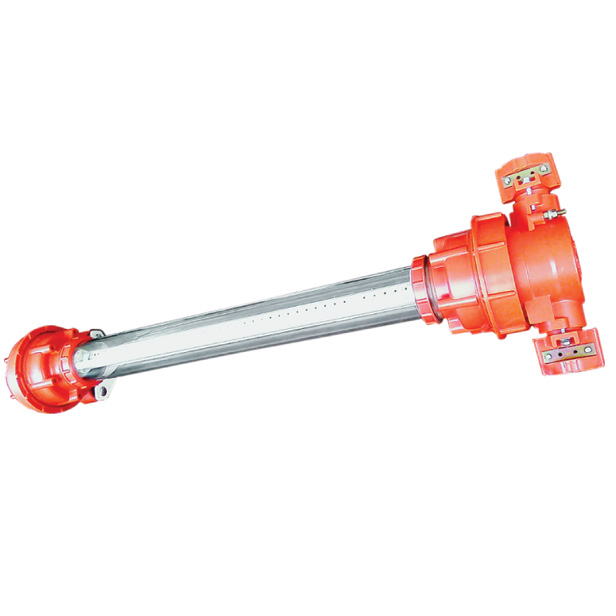

LSR01 with LED. The lamp is mine explosion-proof LED, stationary and mobile, with marking on explosion protection RV is intended for illumination of methane and coal dust of underground mines of coal mines and mines, and also other explosive premises.

  • source of light energy-efficient LEDs (more than 50 000 hours of continuous work), ecological harmless, don't need special recycling (without mercury), instant light on/light off, stable to change of voltage, multiple on/off, high colour rendering; no harmful effect of low-frequencypulses, no UV radiation;
  • screwed explosion connection parts and special key make easy power supply connection and usage;
  • accessible lamp replacement lamp holder is situated in the side end of light source;
  • two cable glands make possible quick transit connection to power supply line.

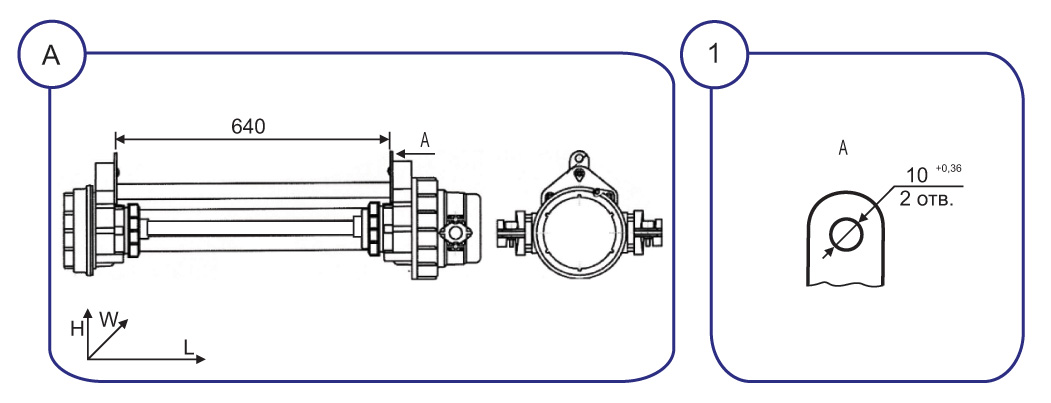

Installation: on hooks (horizontal position).
Network connection - transit or individual, cable Ø16mm or Ø22,8mm.
VATRA LSR01-16-002 N5 (LED) decoding of modification:
1 figure • 0
2 figure • 0
3 figure • nominal voltage:
1- 36V
2- 127V
3- 230V

Lighting fixture type

Rated voltage, V

Protection level

Marking

Source of light

Lamp holder

Luminous f lux, lm

Light distribution curve

Dimensions, LxWxH, mm

Weight, kg ±10%

LSR01-16-001 N5 (LED)

36AC

IP65

РВ 1В

LED

G13

1300

cosine

910х265х205

6,5

РВ ЕхdI

LSR01-16-002 N5 (LED)

127AC

IP65

РВ 1В

LED

G13

1300

cosine

910х265х205

6,5

РВ ЕхdI

LSR01-16-003 N5 (LED)

230AC

IP65

РВ 1В

LED

G13

1300

cosine

910х265х205

6,5

РВ ЕхdI
