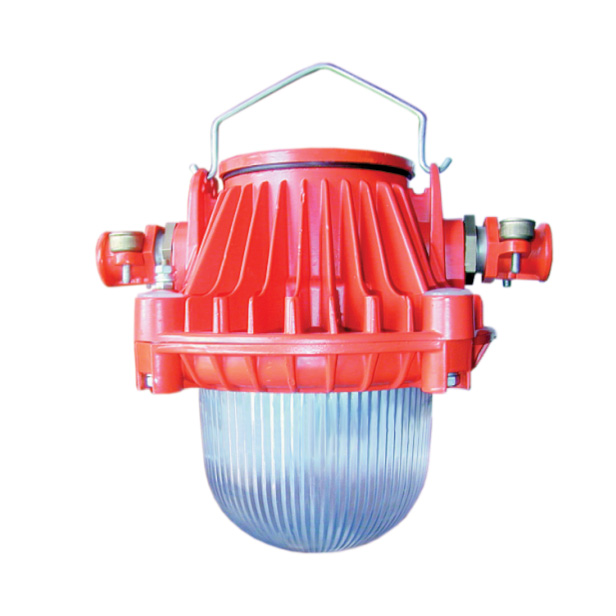

Lamp FSR20U/DSR20U

Name: Lamp FSR20U/DSR20U
Brand: Vatra
Price: 1 UAH
Availability: PreOrder

FSR20U/DSR20U

Download the booklet (~0,08Mb, PDF)

Lighting fixture is used for lighting industrial, agricultural, warehouse and other premises of hazardous areas of zone 22.

Technical specifications

Type of explosion protection	на експорт в МС: PB 1B (PB Ex d I Mb)
Protection class IEC (DSTU ІЕС 60598-1:2002)	Safety class I
Power Factor Correction (PFC)	0,6 (ФСР), 0,9 (ДСР)
Mech. impact protection code (GOST 30631-99)	М1
Input voltage (nominal), V	127 AC, 220 AC
IP Rating	IP65
Ambient temperature range	-40°С...+40°С (У1.5)
Lamp Base Type	E27
Light source	fluorescent compact lamp with ECG, LED bulb
Power, W	7, 28

PRICE REQUEST Download catalog (~10,45Mb, PDF)

Description ADVANTAGES Installation Order example Specifications Download

Lighting fixture is used for lighting industrial, agricultural, warehouse and other premises of hazardous areas of zone 22.

source of light - energy efficient LEDs! more than 50 000 hours of continuous work, stable luminous flux, stable to change of voltage, multiple on/off, instant light on/light off, high colour rendering; no harmful effect of low- frequency pulses, don't need special recycling (without mercury), no UV radiation;
high IP-requirements;
weather-proof long life cycle;
mounted control gear and two cable glands make possible quick transit connection to power supply line.

• individual (cable gland-up) on hook (1)
• individual (one cable gland on the side) or transit (two cable glands on the side) on hook (2), on horizontal (3 or 4) or vertical (5) mounting profile, on rope (6).
Recommended installation height: up to 5m.
Network connection: • (A) cable gland - up individual, cable max. Ø7mm (core section 1,5...2,5mm²).
• (B, C) cable glands (1 or 2pcs.) on the side individual or transit, cable Ø7...12mm (core section 1,5...4mm²).

VATRA DSP11-9-111 N1 decoding of modification:
1 figure • 1- on hook; one cable gland-up
2- on hook; one cable gland-on the side
3- on hook; two cable glands-on the side
4- on horizontal or vertical mounting profile, or on hook, or on rope; one cable gland-on the side
5- on horizontal or vertical mounting profile, or on hook, or on rope; two cable glands-on the side

2 figure • 1- protection level IP52
3 figure • 1- light distribution curve: cosine

Lighting fixture type	Rated voltage, V	Protection level	Source of light	Nominal power, W	Consumed power, W	Luminous flux, lm	Light distribution curve	Dimensions, DxH, mm	Weight, kg ±10%
DSP11-9-111 N1	230 AC	IP65	LED	8,7	9,6	960	cosine	148x165	0,4
DSP11-9-211 N1	230 AC	IP65	LED	8,7	9,6	960	cosine	148x165	0,4
DSP11-9-311 N1	230 AC	IP65	LED	8,7	9,6	960	cosine	148x165	0,4
DSP11-9-411 N1	230 AC	IP65	LED	8,7	9,6	960	cosine	148x165	0,4
DSP11-9-511 N1	230 AC	IP65	LED	8,7	9,6	960	cosine	148x165	0,4
DSP11-13-111 N1	230 AC	IP65	LED	13	14	1560	cosine	148x165	0,4
DSP11-13-211 N1	230 AC	IP65	LED	13	14	1560	cosine	148x165	0,4
DSP11-13-311 N1	230 AC	IP65	LED	13	14	1560	cosine	148x165	0,4
DSP11-13-411 N1	230 AC	IP65	LED	13	14	1560	cosine	148x165	0,4
DSP11-13-511 N1	230 AC	IP65	LED	13	14	1560	cosine	148x165	0,4

vatra-2018-ukr_fsr20u-dsr20u.pdf (PDF, ~ 0,08 Mb)
