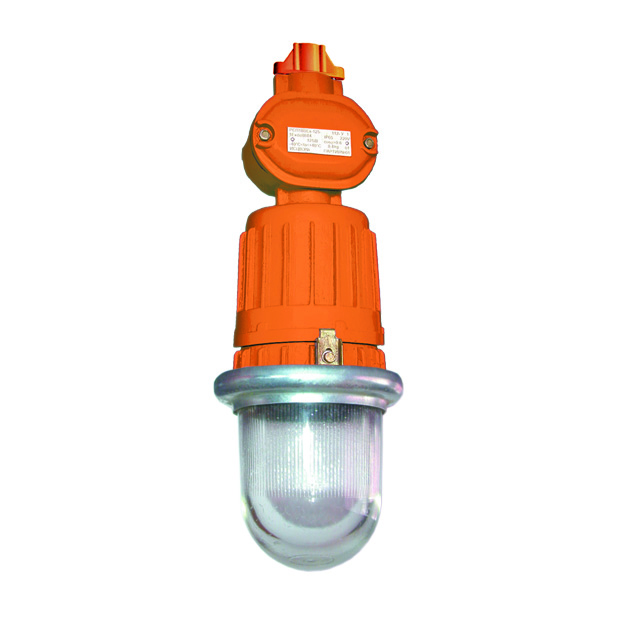

Name: Lamp GSP18VEx, ZhSP18VEx, RSP18VEx
Brand: Vatra
Price: 1 UAH
Availability: PreOrder

GSP18VEx, JSP18VEx

Download the booklet (~0,41Mb, PDF)

Explosion-proof lighting fixture (protection level 1Ex) is used for general lighting highly explosive areas 1, 2 and fire risk classes; and also hazardous areas of zones 21, 22 e.g industrial areas as oil-refining, gas chemical, woodwork and other industries.

Technical specifications

Type of explosion protection	в Україні: 1ExdeIICT4 1ExdeIICТ5 1ExdeIICТ6, на експорт в МС: 1Ex d e IIC T4 Gb 1Ex d e IIC Т5 Gb 1Ex d e IIC T6 Gb
Сlass of an explosive zone	1, 2, 21, 22
Protection class IEC (DSTU ІЕС 60598-1:2002)	Safety class I
Hazardous Area Classification	П-I, П-II
Power Factor Correction (PFC)	0,4, 0,8, 0,9
Mech. impact protection code (GOST 30631-99)	М1
Input voltage (nominal), V	220 AC
IP Rating	IP65
Ambient temperature range	ГСП, ЖСП з ЕПРА: -40°С...+40°С (ХЛ1), -25°С...+40°С (У1), ГСП, ЖСП, РСП з ЕМПРА: -60°С...+40°С (ХЛ1), -40°С...+40°С (У1)
Lamp Base Type	E27, E40
Light source	mercury lamp, metal halide lamp, sodium lamp
Power, W	70, 100, 125

PRICE REQUEST Download catalog (~10,45Mb, PDF)

Description ADVANTAGES Installation Order example Specifications Download

Explosion-proof luminaire of protection level 1Ex for general lighting of explosion-hazardous zones of classes 1, 2 and fire-hazardous zones of classes P-I, P-II in accordance with the marking on explosion protection, and may be used in zones 21, 22 subject to NPAOP 40.1.1.32-01 , "Rules of arrangement of electrical installations" and other normative documents, in premises and external installations in oil, oil refining, gas, chemical, cement, woodworking and other industries.

electronic ballast (GSP, JSP 70W) provides lamp's reignition in hot condition;
two cable glands make possible quick transit connection to power supply line.

• transit -
- type 1 on horizontal (1.1) or vertical (1.2) mounting profile; on request: on hook (1А - 1А.1), on horizontal pipe with outer Ø25...28mm (1В), using rotary harp on horizontal (1С.1) or vertical (1С.2) surface at an angle min 30О- max 60О, on supporting bracket at an angle 30О (1D - 1D.1), on horizontal surface (1E).
- type 2 - on hook (2.1), on horizontal (2.2) or vertical (2.3) mounting profile, on horizontal pipe with outer max Ø20mm (2.4); on request: on screwed pipe G3/4-В (2.5), on horizontal surface (2.6).
• individual - type 3 - on screwed pipe G3/4-В (3.1), on vertical mounting profile (3.2). Recommended installation height: 3...5m, for lower premeises - modifications -431, -432, -631, -632.

Network connection: transit, cable Ø8...12mm or individual, cable Ø8...16mm (core section1,5...4mm²).

VATRA GSP18VЕх-70-433 NF1 decoding of modification:
1 figure •
1- individual, without reflector and protective grid
2- transit, without reflector and protective grid
3- individual, with protective grid
4- transit, with protective grid
5- individual, with reflector and protective grid
6- transit, with reflector and protective grid
7- individual, with reflector
8- transit, with reflector

2 figure •
1- on screwed pipe G3/4-B, on vertical mounting profile (type 3)
2- on hook, on vertical or horizontal mounting profile, on horizontal pipe (type 2)
3- on vertical or horizontal mounting profile (type 1)

3 figure •
1- without power factor compensation
2- with power factor compensation
3- with electronic ballast

Lighting fixture type	Rated voltage, V	Protection level	Marking	Source of light	Lamp holder	Light distribution curve	%	Cos	Dimensions, DxH, mm	Weight, kg ±10%

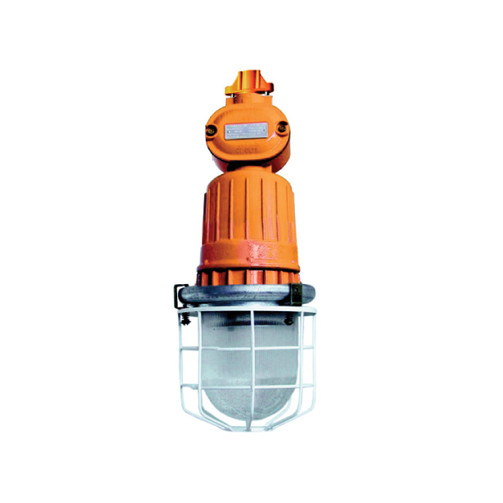

GSP18VEx-70-113 N1	230 AC	IP65	T6 / T80°	MHL	E27	steady	70	0,9	205x555	6,8
GSP18VEx-70-113 NF1	230 AC	IP65	T6 / T80°	MHL	E27	steady	70	0,9	205x555	6,8

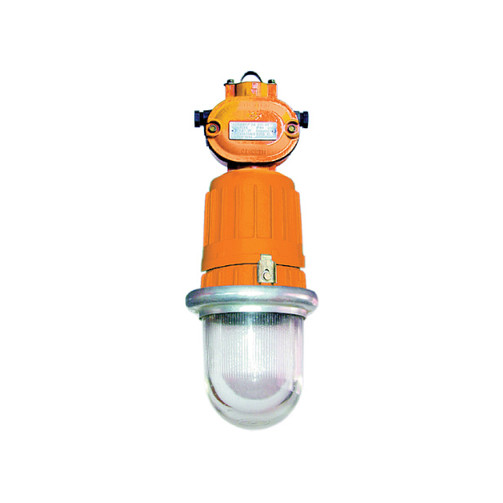

GSP18VEx-70-223 N1	230 AC	IP65	T6 / T80°	MHL	E27	steady	70	0,9	205x515	6,8
GSP18VEx-70-223 NF1	230 AC	IP65	T6 / T80°	MHL	E27	steady	70	0,9	205x515	6,8
GSP18VEx-70-313 N1	230 AC	IP65	T6 / T80°	MHL	E27	steady	70	0,9	205х565	7,4
GSP18VEx-70-313 NF1	230 AC	IP65	T6 / T80°	MHL	E27	steady	70	0,9	205х565	7,4

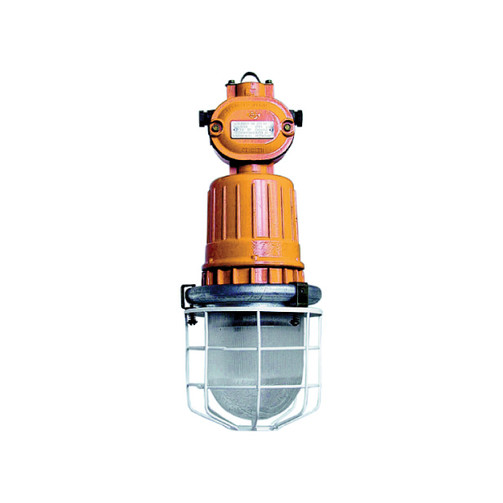

GSP18VEx-70-423 N1	230 AC	IP65	T6 / T80°	MHL	E27	steady	70	0,9	205х530	7,4
GSP18VEx-70-423 NF1	230 AC	IP65	T6 / T80°	MHL	E27	steady	70	0,9	205х530	7,4
GSP18VEx-70-433 N1	230 AC	IP65	T6 / T80°	MHL	E27	steady	55	0,9	205х460	7,8
GSP18VEx-70-433 NF1	230 AC	IP65	T6 / T80°	MHL	E27	steady	55	0,9	205х460	7,8

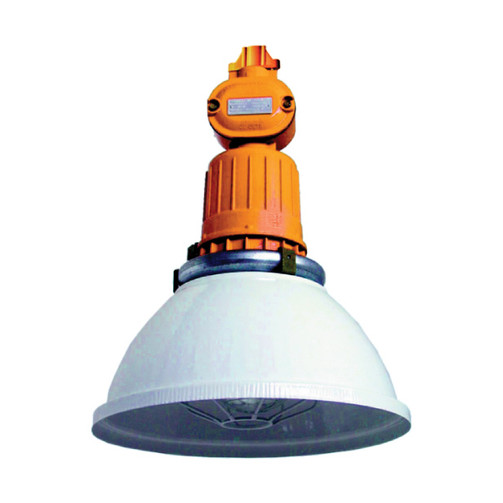

GSP18VEx-70-513 N1	230 AC	IP65	T6 / T80°	MHL	E27	cosine	50	0,9	420х555	8,8
GSP18VEx-70-513 NF1	230 AC	IP65	T6 / T80°	MHL	E27	cosine	50	0,9	420х555	8,8

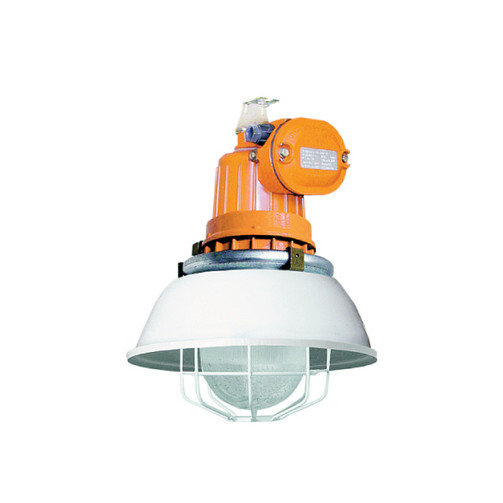

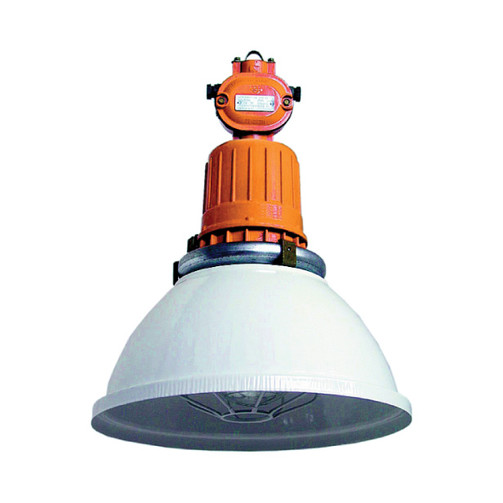

GSP18VEx-70-623 N1	230 AC	IP65	T6 / T80°	MHL	E27	cosine	50	0,9	420x515	8,8
GSP18VEx-70-623 NF1	230 AC	IP65	T6 / T80°	MHL	E27	cosine	50	0,9	420x515	8,8
GSP18VEx-70-633 N1	230 AC	IP65	T6 / T80°	MHL	E27	cosine	55	0,9	335х460	8,7
GSP18VEx-70-633 NF1	230 AC	IP65	T6 / T80°	MHL	E27	cosine	55	0,9	335х460	8,7

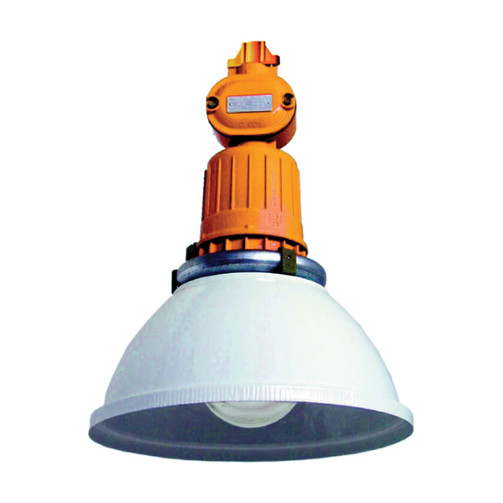

GSP18VEx-70-713 N1	230 AC	IP65	T6 / T80°	MHL	E27	cosine	50	0,9	420х565	8,3
GSP18VEx-70-713 NF1	230 AC	IP65	T6 / T80°	MHL	E27	cosine	50	0,9	420х565	8,3

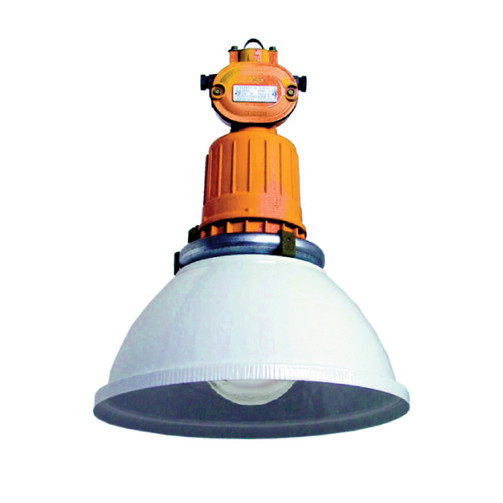

GSP18VEx-70-823 N1	230 AC	IP65	T6 / T80°	MHL	E27	cosine	50	0,9	420х530	8,3
GSP18VEx-70-823 NF1	230 AC	IP65	T6 / T80°	MHL	E27	cosine	50	0,9	420х530	8,3
GSP18VEx-100-111 N1	230 AC	IP65	T5 / T90°	MHL	E27	steady	70	0,4	205x555	8,3
GSP18VEx-100-111 NF1	230 AC	IP65	T5 / T90°	MHL	E27	steady	70	0,4	205x555	8,3
GSP18VEx-100-112 N1	230 AC	IP65	T5 / T90°	MHL	E27	steady	70	0,8	205x555	8,3
GSP18VEx-100-112 NF1	230 AC	IP65	T5 / T90°	MHL	E27	steady	70	0,8	205x555	8,3
GSP18VEx-100-221 N1	230 AC	IP65	T5 / T90°	MHL	E27	steady	70	0,4	205x520	8,3
GSP18VEx-100-221 NF1	230 AC	IP65	T5 / T90°	MHL	E27	steady	70	0,4	205x520	8,3
GSP18VEx-100-222 N1	230 AC	IP65	T5 / T90°	MHL	E27	steady	70	0,8	205x515	8,3
GSP18VEx-100-222 NF1	230 AC	IP65	T5 / T90°	MHL	E27	steady	70	0,8	205x515	8,3
GSP18VEx-100-311 N1	230 AC	IP65	T5 / T90°	MHL	E27	steady	70	0,4	205х565	8,9
GSP18VEx-100-311 NF1	230 AC	IP65	T5 / T90°	MHL	E27	steady	70	0,4	205х565	8,9
GSP18VEx-100-312 N1	230 AC	IP65	T5 / T90°	MHL	E27	steady	70	0,8	205х565	8,9
GSP18VEx-100-312 NF1	230 AC	IP65	T5 / T90°	MHL	E27	steady	70	0,8	205х565	8,9
GSP18VEx-100-421 N1	230 AC	IP65	T5 / T90°	MHL	E27	steady	70	0,4	205х530	8,9
GSP18VEx-100-421 NF1	230 AC	IP65	T5 / T90°	MHL	E27	steady	70	0,4	205х530	8,9
GSP18VEx-100-422 N1	230 AC	IP65	T5 / T90°	MHL	E27	steady	70	0,8	205х530	8,9
GSP18VEx-100-422 NF1	230 AC	IP65	T5 / T90°	MHL	E27	steady	70	0,8	205х530	8,9

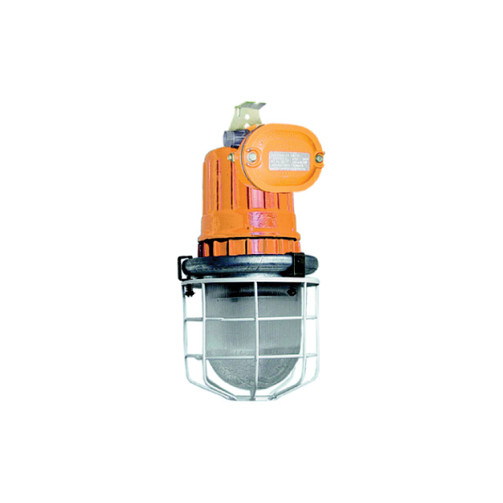

GSP18VEx-100-431 N1	230 AC	IP65	T5 / T90°	MHL	E27	steady	70	0,4	205х460	9,1
GSP18VEx-100-431 NF1	230 AC	IP65	T5 / T90°	MHL	E27	steady	70	0,4	205х460	9,1
GSP18VEx-100-432 N1	230 AC	IP65	T5 / T90°	MHL	E27	steady	70	0,8	205х460	9,1
GSP18VEx-100-432 NF1	230 AC	IP65	T5 / T90°	MHL	E27	steady	70	0,8	205х460	9,1
GSP18VEx-100-511 N1	230 AC	IP65	T5 / T90°	MHL	E27	cosine	55	0,4	420х555	10,3
GSP18VEx-100-511 NF1	230 AC	IP65	T5 / T90°	MHL	E27	cosine	55	0,4	420х555	10,3
GSP18VEx-100-512 N1	230 AC	IP65	T5 / T90°	MHL	E27	cosine	55	0,8	420х555	10,3
GSP18VEx-100-512 NF1	230 AC	IP65	T5 / T90°	MHL	E27	cosine	55	0,8	420х555	10,3
GSP18VEx-100-621 N1	230 AC	IP65	T5 / T90°
