Supplies of lighting and electrical installations

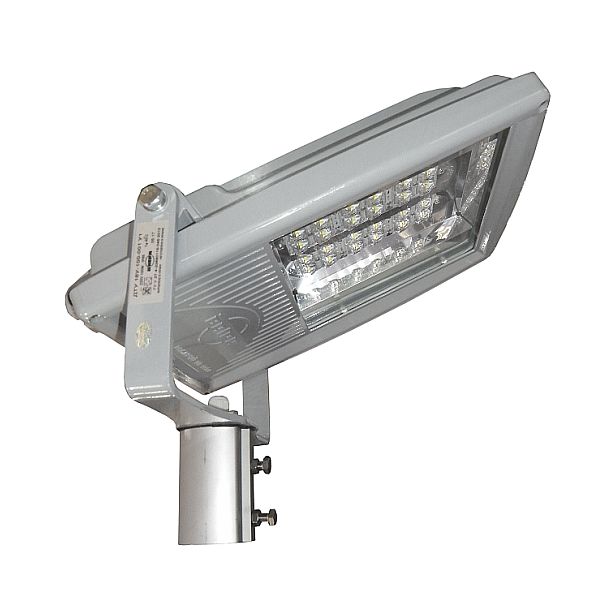

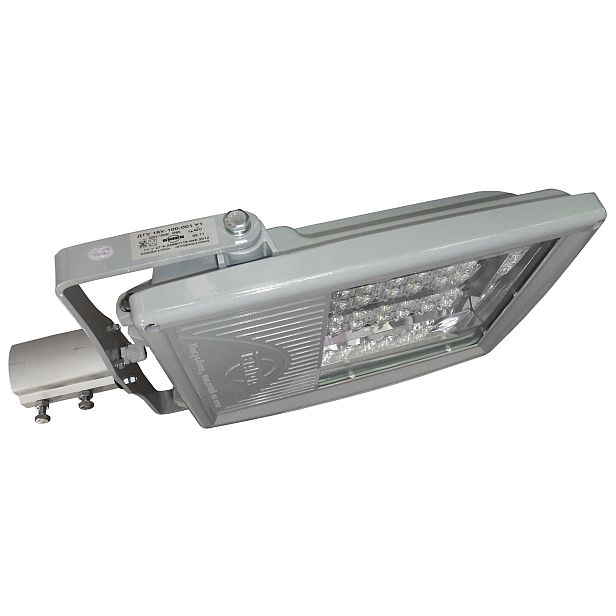

Lamp DTU18U

DTU18U
Lighting fixture is used for lighting streets, roads, highways, industrial and other premises.
Technical specifications
Protection class IEC (DSTU ІЕС 60598-1:2002) Safety class I
Power Factor Correction (PFC) 0,95
Correlated Color Temp (ССТ) 4000К
Mech. impact protection code (GOST 30631-99) М1
Input voltage (nominal), V 220 AC
IP Rating IP65
Ambient temperature range -40°С...+50°С (У1), -40°С...+80°С (У1) з датчиком терморегуляції
Light source LEDs
Power, W 25, 40, 60, 100, 120, 150, 200
Lighting fixture is used for lighting streets, roads, highways, industrial and other premises.
  • regulation of lighting direction;
  • source of light - energy efficient LEDs (more than 50 000 hours of continuous work), ecological harmless, don't need special recycling (without mercury), instant light on/light off, stable to change of voltage, multiple on/off, high colour rendering; no harmful effect of low-frequency pulses, no UV radiation;
  • high IP-requirements;
  • weather-proof – long life cycle.
Network connection – individual, cable Ø9...12mm (core section 1,5...2,5mm2).
Installation: on metal mounting bracket support Ø48...50mm (or 60mm, on request), with regulation ability.
Recommended installation height: 10m.
VATRA DTU18U-100-001 N1 1 figure • 0
2 figure • 0- holder for installation on pipe Ø48...50, or on request 60mm
3 figure • light distribution curve:
1- wide
2- half wide

Lighting fixture type

Rated voltage, V

Protection level

Source of light

Nominal power, W

Luminous flux. lm

Dimensions, LxWxH, mm

Weight, kg ±10%

DTU18U-60-001/002 N1

230 AC

IP65

LED

60

7200

570x356x95

8,3

DTU18U-80-001/002 N1

230 AC

IP65

LED

80

9600

570x356x95

8,5

DTU18U-100-001/002 N1

230 AC

IP65

LED

100

12000

570x356x95

8,6

DTU18U-120-001/002 N1

230 AC

IP65

LED

120

14400

570x356x95

8,6
