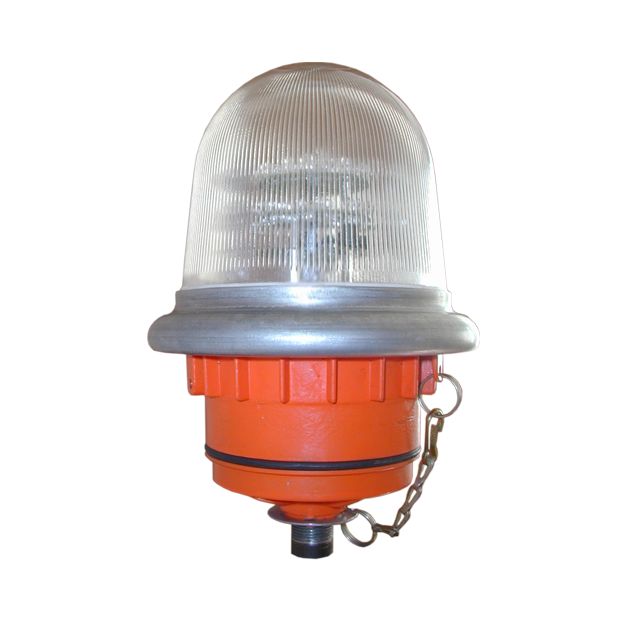

Lamp DТU09U-ZOD

DТU09U-ZOD
Lighting fixture is used for marking the high and extensive facilities to ensure safe air traffic - red glow. To indicate helipads - green glow.
Technical specifications
Protection class IEC (DSTU ІЕС 60598-1:2002) Safety class I
Power Factor Correction (PFC) 0,9
Mech. impact protection code (GOST 30631-99) М3
Input voltage (nominal), V 24 АС, 220 AC
IP Rating IP65
Ambient temperature range -50°С...+50°С (У1, Т1)
Light source LEDs
Power, W 6
Lighting fixture is used for marking the high and extensive facilities to ensure safe air traffic - red glow. To indicate helipads - green glow.
  • high IP-requirements, fireproof, high mechanical strength and reliability;
  • source of light - energy efficient LEDs (more than 50 000 hours of continuous work), ecological harmless, don't need special recycling (without mercury), instant light on/light off, stable to change of voltage, multiple on/off, high colour rendering; no harmful effect of low-frequency pulses, no UV radiation.
Network connection: cable Ø6...10mm (core section 1,5...2,5mm2).
Istallation: on vertical screwed pipe G3/4-В.
DТU09U-ZOD-6-001 N1 decoding of modification:
1 figure • emission colour: 0- red
1- green

2 figure • supply voltage:
0- 230V, 50Hz
1- 24V, 50Hz

3 figure • 1- reserve figure

 Lighting fixture type

Rated voltage, V

Protection level

Source of light

Luminous intensity, min

Emission colour

Angle of radiation, gr., H/V

Dimensions, DxH, mm

Weight, kg

±10%

DTU09U-ZOD-6-001 N1

230 AC

IP65

LED

10

red

360/96

205x290

4

DTU09U-ZOD-6-001 T1

230 AC

IP65

LED

10

red

360/96

205x290

4

DTU09U-ZOD-6-011 N1

24 AC

IP65

LED

10

red

360/96

205x290

4

DTU09U-ZOD-6-011 T1

24 AC

IP65

LED

10

red

360/96

205x290

4

DTU09U-ZOD-6-101 N1

230 AC

IP65

LED

10

green

360/96

205x290

4

DTU09U-ZOD-6-111 N1

24 AC

IP65

LED

10

green

360/96

205x290

4
