Supplies of lighting and electrical installations

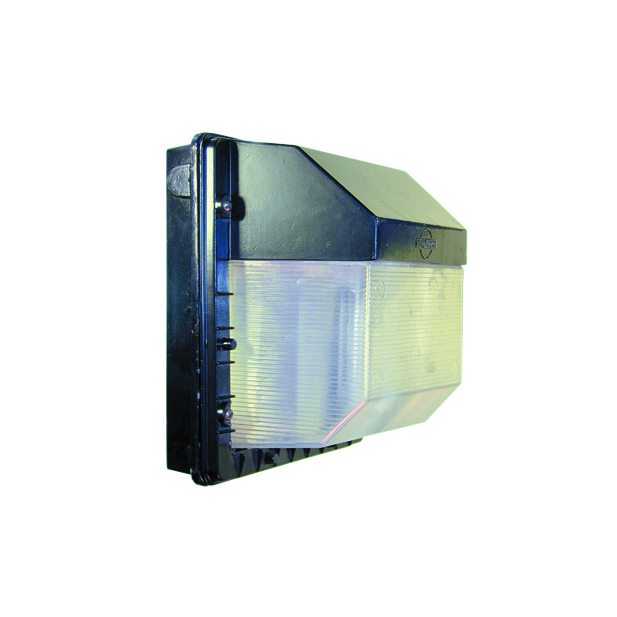

DBU01V, JBU1V, LBU01V

DBU01V, JBU1V, LBU01V
Lighting fixture is used underground crosswalk, tunnels and corridors.
Technical specifications
Protection class IEC (DSTU ІЕС 60598-1:2002) Safety class I
Power Factor Correction (PFC) ДБУ, ЖБУ, РБУ: 0,9, ЛБУ: 0,6
Correlated Color Temp (ССТ) 5000...6500К
Mech. impact protection code (GOST 30631-99) М1
Input voltage (nominal), V 220 AC
IP Rating ІР54
Ambient temperature range ДБУ: -30°С...+40°С (У1), ЖБУ, РБУ: -40°С...+40°С (У1), ЛБУ: -10°С...+40°С (У1)
Lamp Base Type E27
Light source fluorescent compact lamp with ECG, LEDs, mercury lamp, sodium lamp
Power, W 30, 32, 70, 80
  • DBU: source of light - energy efficient LEDs (more than 50 000 hours of continuous work), ecological harmless, don't need special recycling (without mercury), instant light on/light off, stable to change of voltage, multiple on/off, high colour rendering; no harmful effect of low-frequency pulses, no UV radiation;
  • LBU: energy-efficient compact fluorescent lamp: high energy and luminous efficiency, no stroboscopic effect, life cycle - nearly 10 000 hours;
  • mounted control gear reduces installaition costs;
  • simultaneous access to lamp, ballast and mpunting elements during opening;
  • high IP-requirements, anti-vandal, weather-proof.
Network connection: cable Ø9...14mm or wires (core section 1,5...2,5mm2).
Installation: on vertical supporting surface.
Recommended installation height: 2,5...5m.
VATRA VATRA DBU01V-30-022 N1 decoding of modification:
1 figure • 0
2 figure • design version:
1- common
2- anti-vandal

3 figure • cable input:
1- on the side
2- at the bottom

Lighting fixture type

Rated voltage, V

Protection level

Source of light

Lamp holder

Light distribution curve

Dimensions, LxWxH, mm

Weight, kg ±10%

DBU01V-30-001 N1

230 AC

IP54

LED

-

side/cosine

190х280х295

3

DBU01V-30-002 N1

230 AC

IP54

LED

-

side/cosine

190х280х295

3

DBU01V-30-011 N1

230 AC

IP54

LED

-

side/cosine

190х280х295

3

DBU01V-30-012 N1

230 AC

IP54

LED

-

side/cosine

190х280х295

3

JBU01V-70-001 N1

230 AC

IP54

SL

Е27

side/wide

190х280х295

5

JBU01V-70-002 N1

230 AC

IP54

SL

Е27

side/wide

190х280х295

5

JBU01V-70-011 N1

230 AC

IP54

SL

Е27

side/wide

190х280х295

5

JBU01V-70-012 N1

230 AC

IP54

SL

Е27

side/wide

190х280х295

5

LBU01V-32-001 N1

230 AC

IP54

CFL

Е27

side/steady

190х280х295

3,5

LBU01V-32-002 N1

230 AC

IP54

CFL

Е27

side/steady

190х280х295

3,5

LBU01V-32-011 N1

230 AC

IP54

CFL

Е27

side/steady

190х280х295

3,5

LBU01V-32-012 N1

230 AC

IP54

CFL

Е27

side/steady

190х280х295

3,5
