Supplies of lighting and electrical installations

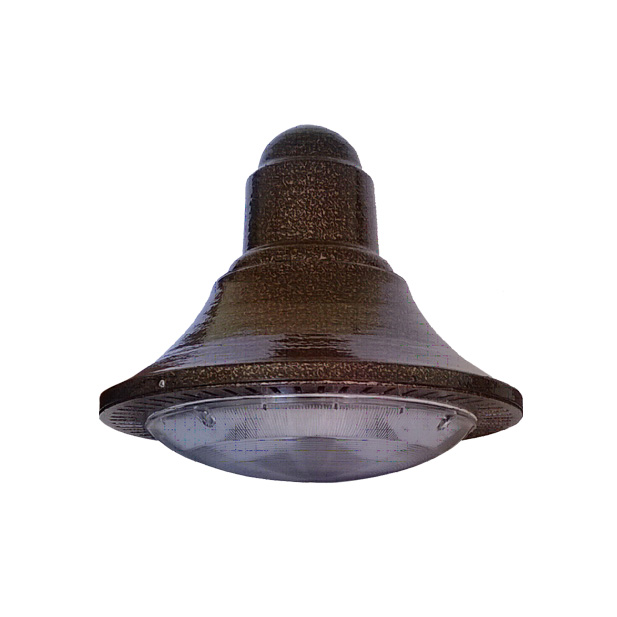

DKU42U

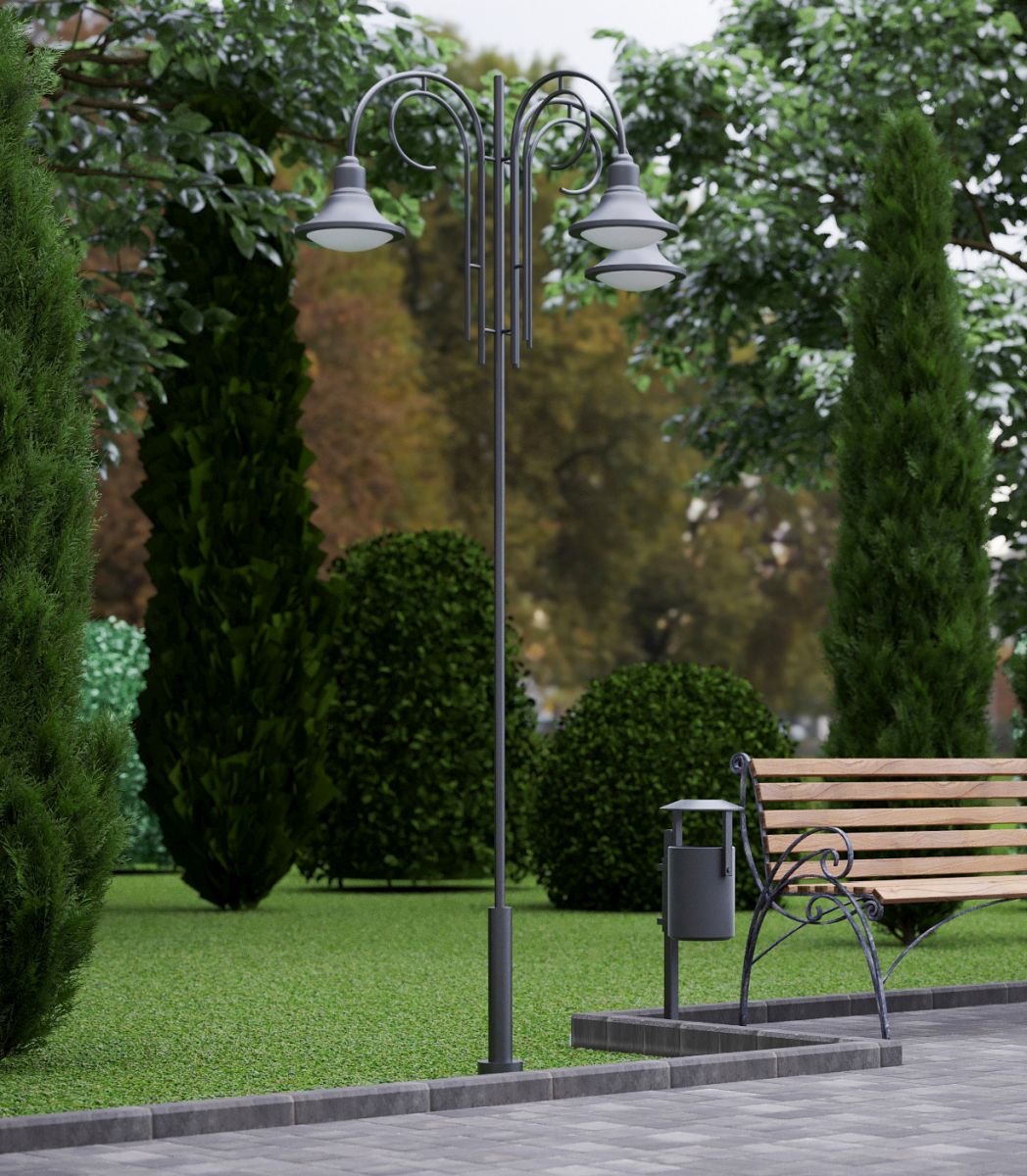

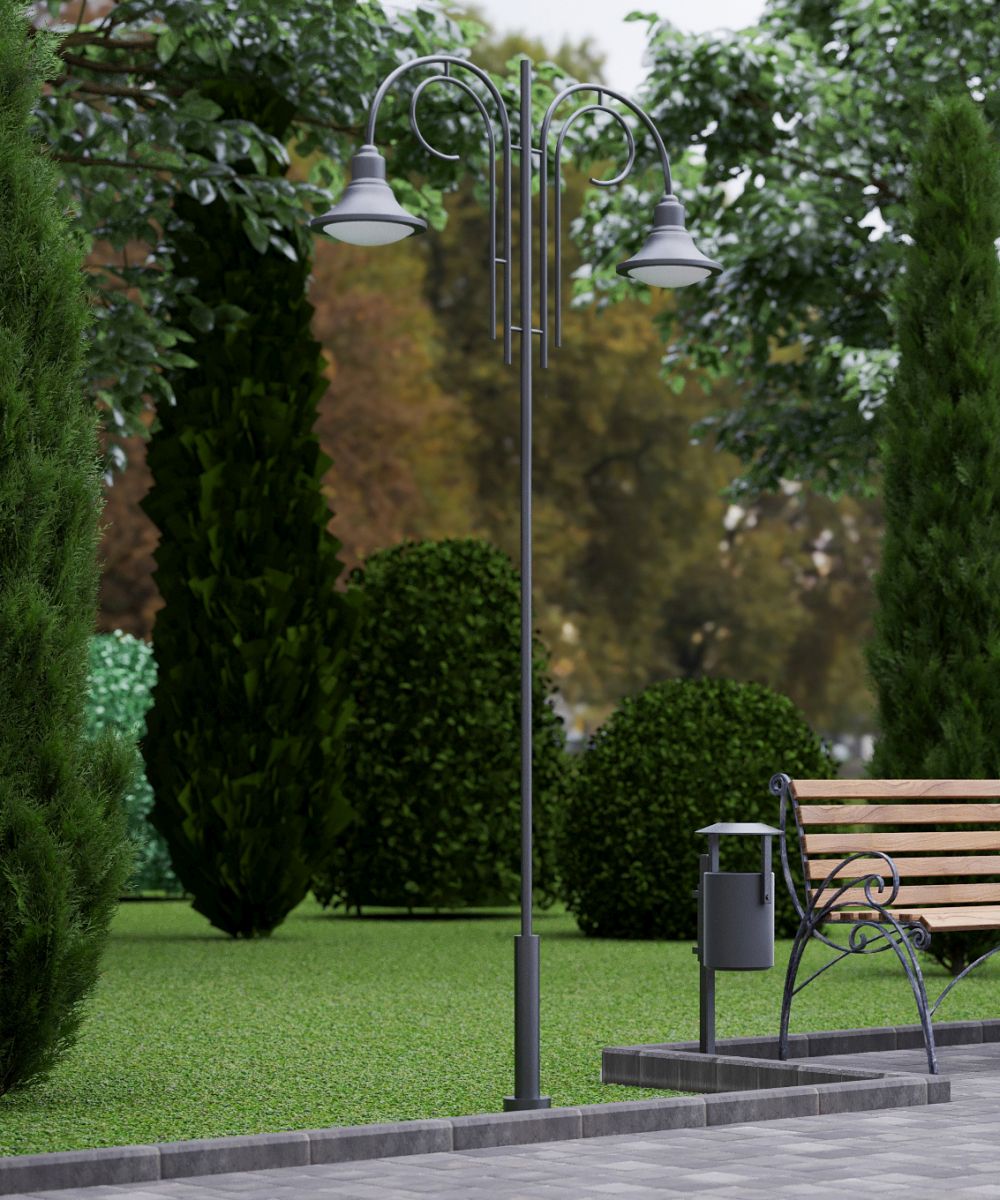

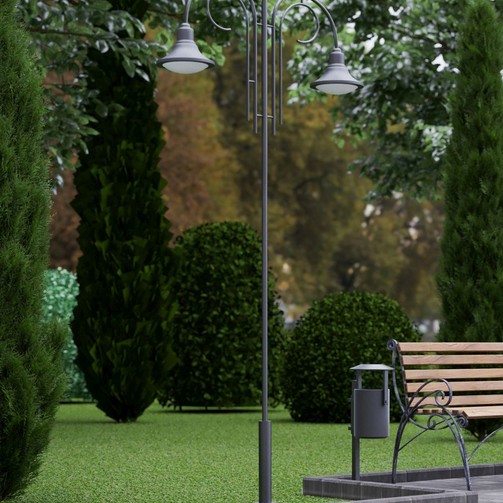

Lighting fixture is used for decorative lighting of parks, squares, gardens, etc.
Technical specifications
Protection class IEC (DSTU ІЕС 60598-1:2002) Safety class I
Power Factor Correction (PFC) 0,9
Correlated Color Temp (ССТ) 5700K
Mech. impact protection code (GOST 30631-99) М1
Input voltage (nominal), V 230 AC
IP Rating IP65
Ambient temperature range -40°С...+40°С (У1)
Light source LEDs
Power, W 30, 45, 60
  • source of light - energy efficient LEDs (more than 50 000 hours of continuous work), ecological harmless, don't need special recycling (without mercury), instant light on/light off, stable to change of voltage, multiple on/off, high colour rendering; no harmful effect of low-frequency pulses, no UV radiation;
  • mounted control gear reduces installation costs;
  • high IP-requirements, anti-vandal, weatherproof.
Network connection: cable Ø9...12mm (core section 1,5...4mm2).
Installation: on vertical screwed pipe G1.
Recommended installation height: 2...5m.
VATRA DKU42U-30-002 N1 decoding of modification:
1 figure • 0
2 figure • 0
3 figure • 2- light distribution curve: cosine

Lighting fixture type

Rated
voltage, V

Protection
level

Source
of light

Nominal
power, W

Luminous
flux, lm

Light
distribution curve

Dimensions,
DxH, mm

Weight,
kg ±10%

DKU42U-30-002 N1

230 AC

IP65

LED

30

3600

cosine

450х420

8

DKU42U-45-002 N1

230 AC

IP65

LED

45

5400

cosine

450х420

8

DKU42U-60-002 N1

230 AC

IP65

LED

60

7200

cosine

450х420

8
