Supplies of lighting and electrical installations

Lamp DKP01U (model B)

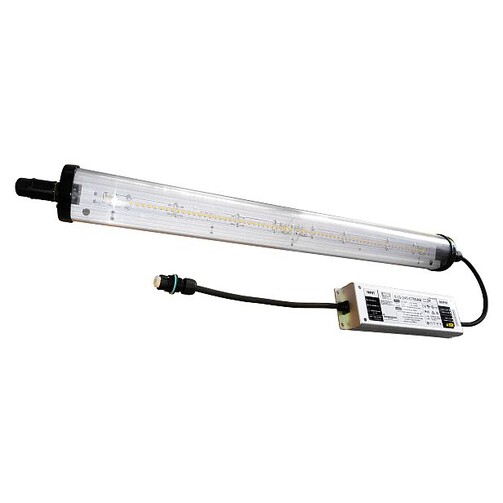

DKP01U lamp (model B)
For local lighting of industrial work areas with severe environmental conditions, with a high content of dust and moisture.
Technical specifications
Protection class IEC (DSTU ІЕС 60598-1:2002) Safety class I
Power Factor Correction (PFC) 0,95...0,97
Correlated Color Temp (ССТ) 4000К
Mech. impact protection code (GOST 30631-99) М8
Input voltage (nominal), V 220 AC
Ambient temperature range -20°С...+40°С (УХЛ3.1)
Light source LEDs

For local lighting of industrial work areas with severe environmental conditions, with a high content of dust and moisture (on conveyors, in workplaces in shops and workshops, in inspection pits of car, tram and trolleybus depots, repair shops for cars, tractors, road machines ).
And also for the general lighting of industrial, administrative, commercial, warehouse, agricultural (including on poultry farms) and other rooms.

  • lamps of model B are intended for transit connection (installation) in the main lighting line (photo B4), thus, lamps of 20 W - 8 pieces. in one line, and 40 W - 4 pieces. Single use is not allowed;
  • the luminaires are equipped with an electronic power supply (EDS) with DIM function - dimming intensity control by dimming (1 ... 10V DC) in the range of 10 ... 100%;
  • light source - energy-saving LEDs - energy efficiency class "A ++"! over 50 thousand hours of continuous operation, stable luminous flux, instantly ignited / re-ignited, resistant to voltage drops and multiple ons / offs, have high color rendering, no harmful effect of low-frequency ripple, no ultraviolet radiation (not required), environmentally friendly non-environmentally friendly;
  • electronic components and LEDs exclusively from the world's leading manufacturers;
  • high degree of dust and moisture protection, fireproof, shockproof, weatherproof - has a long service life

Light-transmitting protective element - body-tube: matte shock-resistant light-stabilized polycarbonate.

Side covers: rolled steel.

Mounting brackets: rolled steel.

Control equipment: independent EDJ with DIM function.

Cable entry: 2pcs.

Options: lamp with LED light source.

SOURCE OF LIGHT: LEDs.

With the help of two brackets on the support surface with threaded pins, screws, M4 bolts or Ø4mm screws.

ELECTRICAL CONNECTIONS: transit cable Ø6 ... 12mm (core cross section 1.5 ... 2.5 mm2).

FIRE DKP01U-8x20-113 UHL3.1

Decryption of modification:

1 digit • design, electrical connection method:
1- independent EDG with DIM function, transit to the line - two cable entries

2 digit • bracket type:
1- bent at an angle of 90 °

3 digit • supply voltage:
3- 220V

Lamp type Voltage, V Degree of protection DS Power, W ± 5% Luminous flux, lm ± 5% type KSS Dimensions, LxH, mm ± 10% Weight, kg ± 10%
DKP01U-8х20-113 220 AC IP67 LED 8х20 8х2600 D 8х(685х150) 8х1,7
DKP01U-4х40-113 220 AC IP67 LED 4х40 4х5200 D 4х(1315х150) 4х3,0
