Supplies of lighting and electrical installations

DVO27U Jupiter-LED-2

DVO27U Jupiter-LED-2

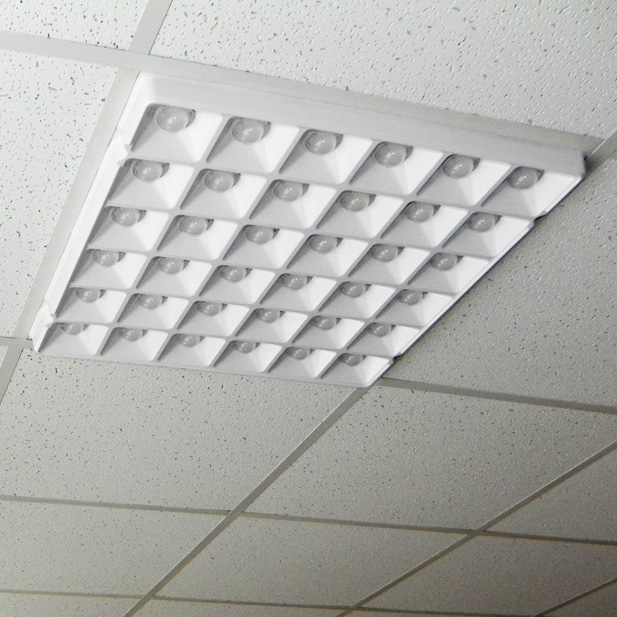

Lighting fixture is used for lighting classrooms, libraries, offices, commercial and administrative buildings.
Technical specifications
Protection class IEC (DSTU ІЕС 60598-1:2002) Safety class I
Power Factor Correction (PFC) 0,95
Correlated Color Temp (ССТ) 2700К, 4000К
Mech. impact protection code (GOST 30631-99) М1
Input voltage (nominal), V 220 AC
IP Rating IР20
Ambient temperature range -20°С...+40°С (УХЛ4)
Light source LEDs
Power, W 18, 36
  • special material (matt light-stabilized polycarbonate) provides comfort and quality lighting;
  • source of light - energy efficient LEDs (more than 50 000 hours of continuous work), ecological harmless, don't need special recycling (without mercury), instant light on/light off, stable to change of voltage, multiple on/off, high colour rendering; no harmful effect of low-frequency pulses, no UV radiation;
  • weather-proof – long life cycle.
  • in suspension ceiling;
  • on supporting surface or mounting profile - screws,threaded rods or bolts.
Network connection – individual cable Ø up to 10mm (core section 1,5...2,5mm) or wires, core section 1,5...2,5mm2.
VATRA DVO27U-33-001 NF4 Jupiter-LED-2 decoding of modification:
1 figure • 0
2 figure • design version:
0- dimensions 596х596 or 596х320
3 figure • 1- 4000К (white)
2- 2700К (warm white)



Lighting fixture type



Rated voltage, V



Protection level



Source of light



Consumed power, W



Luminous flux, lm

Light distribution curve



Dimensions, LxWxH, mm



Weight, kg ±10%

DVO27U-16-002 Jupiter-LED-2

230 АС

IP20

LED

18

2340

cosine

596х320х54

1,6

DVO27U-33-001 Jupiter-LED-2

230 АС

IP20

LED

36

4680

cosine

596х596х54

2,8

DVO27U-33-002 Jupiter-LED-2

230 АС

IP20

LED

36

4680

cosine

596х596х54

2,8
