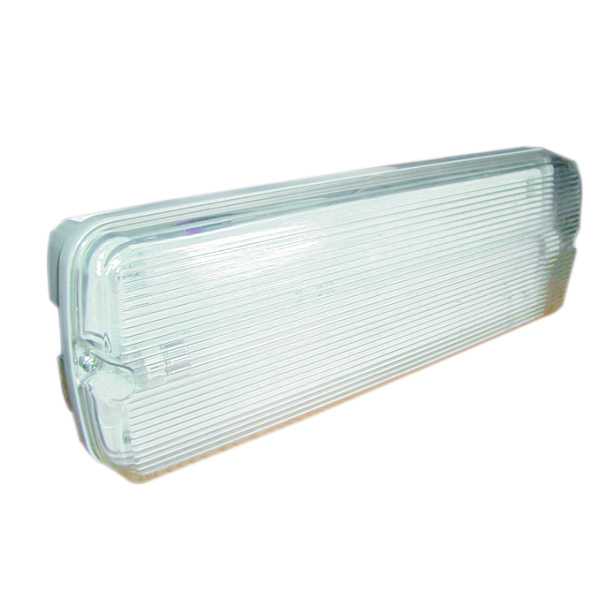

Lamp DPP06U (emergency)

Name: Lamp DPP06U (emergency)
Brand: Vatra
Price: 1 UAH
Availability: PreOrder

DPP06U (emergency)

Lighting fixture is used for emergency lighting industrial, administrative, commercial and other premises in the case of disconnect the main power supply.

Technical specifications

Protection class IEC (DSTU ІЕС 60598-1:2002)	Safety class I
Hazardous Area Classification	П-I, П-II
Power Factor Correction (PFC)	0,95
Mech. impact protection code (GOST 30631-99)	М1
Input voltage (nominal), V	220 AC
IP Rating	IP65
Ambient temperature range	+5°С...+40°С (У3.1)
Light source	LEDs
Power, W	8

PRICE REQUEST Download catalog (~10,45Mb, PDF)

Description ADVANTAGES Installation Network connection Order example Specifications

Lighting fixture is used for emergency lighting industrial, administrative, commercial and other premises in the case of disconnect the main power supply.

operation time mode min. 3 hours;
source of light - energy efficient LEDs (more than 50 000 hours of continuous work), ecological harmless, don't need special recycling (without mercury), instant light on/light off, stable to change of voltage, multiple on/off, high colour rendering; no harmful effect of low-frequency pulses, no UV radiation;
high IP-requirements, anti-vandal;
weather-proof - long life cycle.

Installation: on supporting surface using screws, threaded rods or bolts.

Network connection – individual cable Ø5...10mm (core section 1,5...4mm²).

VАТRА DPP06U-8-221 NF3.1

decoding of modification:

1 figure • design version:
2- anti-vandal

2 figure • network connection:
1- on top (individual)
2- on side (individual)
3- on side transit

3 figure •
1- LEDs

Lighting fixture type	Rated voltage, V	Protection level	Source of light	Luminous flux, lm	Light distribution curve	Emergency operation time, h, min.	Dimensions, LxWxH, mm	Weight, kg ±10%
DPP06U-8-211	230 AC	IP65	LED	835	cosine	3	380х155х90	1,8
DPP06U-8-221	230 AC	IP65	LED	835	cosine	3	385х155х90	1,8
DPP06U-8-231	230 AC	IP65	LED	835	cosine	3	390х155х90	1,8
