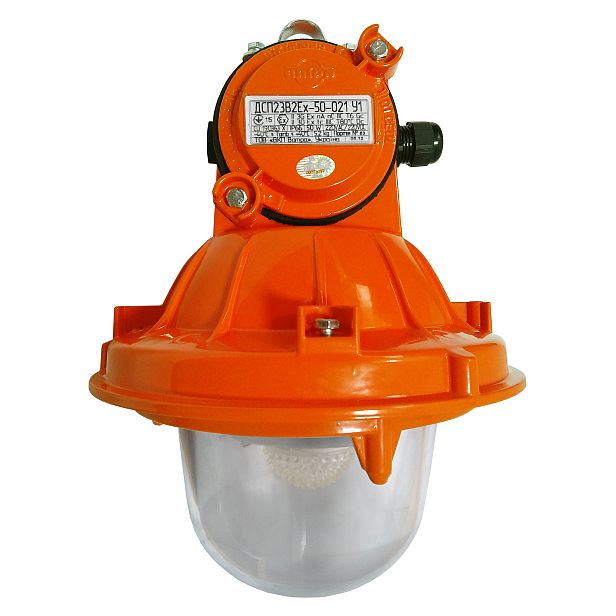

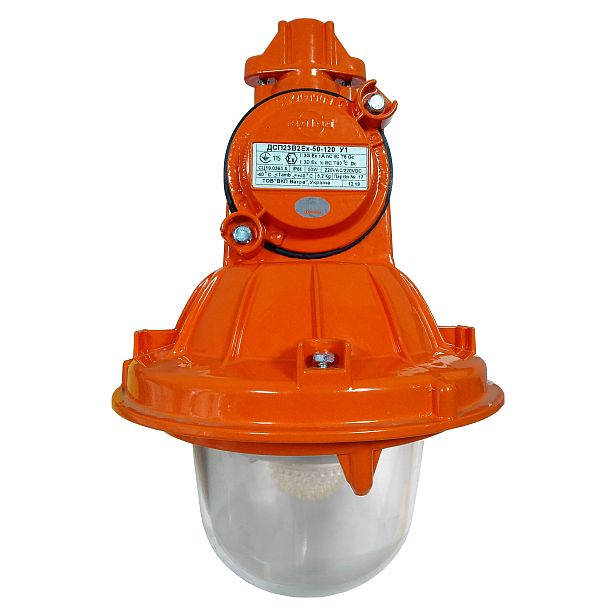

Lamp DSP23V2Ex

operating range of AC voltage 100...305V, DC voltage 142...431V;
high level of dust and moisture protection;
weatherproof - long life cycle;
energy efficient LEDs (more than 50 000 hours of continuous work), ecological harmless, don't need special recycling (without mercury), instant light on/light off, stable to change of voltage, multiple on/off, high colour rendering; no harmful effect of low-frequencypulses, no UV radiation;
2 cable glands for electrical cable - transit electrical connection in the line;

Housing: aluminum alloy.
Light-transparent protective element: heat-resistant glass.
Protective grid (on request): steel wire.
Control gear: driver.
Cable gland: 1 or 2pcs.
Source of light: LEDs.

Delivery set: lighting fixture with LEDs

Network connection:
(A) individual, non-armored cable ø8...16mm (core section up to 4mm2)
(В) individual or transit:
• non-armored cable ø7...13mm (core section up to 4mm2).
• armored cable ø9,5...15,9mm (core section up to 4mm2).

Mounting:
 • (A) individual - on vertical screwed pipe G3/4-В (1), vertical mounting profile (2).

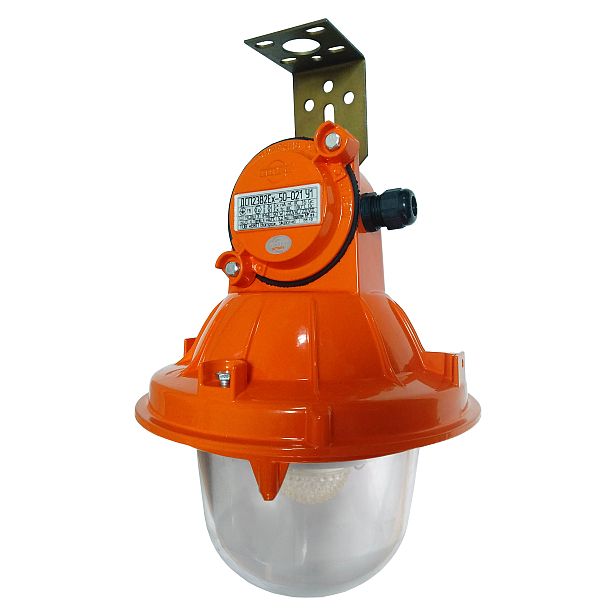

 • (В) transit or individual - on hook (3), on horizontal pipe max. ø20mm (4), on horizontal or vertical mounting profile (5).

VATRA DSP23V2Ex-50- 041decoding of modification:

1 figure • light distribution curve:
                 0- 140^O
                 1- 120^O
2 figure • network connection:
                 1- individual armored cable
                 2- individual non-armored cable
                 3- transit armored cable
                 4- transit non-armored cable
3 figure • mounting:
                 0- on vertical screwed pipe G3/4-B, on vertical mounting profile
                 1- on hook, on horizontal pipe with outer ø20mm, on vertical or horizontal mounting profile
