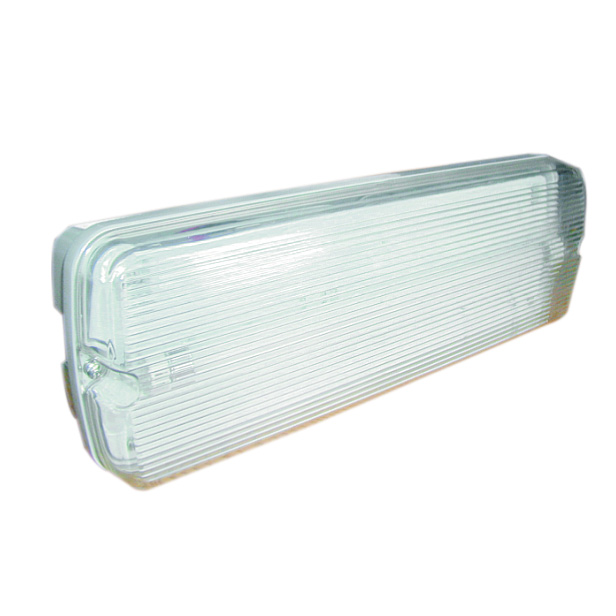

Lamp DPP05V, LPP05V

Name: Lamp DPP05V, LPP05V
Brand: Vatra
Price: 1 UAH
Availability: PreOrder

DPP05V, LPP05V

Download the booklet (~0,10Mb, PDF)

Lighting fixture is used for general lighting of industrial, administrative, commercial, agricultural, warehouses (anti-vandal version) and other premises of hazardous area of zone 22 and fire risk classes.

Technical specifications

Protection class IEC (DSTU ІЕС 60598-1:2002)	Safety class I
Hazardous Area Classification	П-I, П-II
Power Factor Correction (PFC)	0,5: 0,95
Correlated Color Temp (ССТ)	ДПП: 4000К
Mech. impact protection code (GOST 30631-99)	М1
Input voltage (nominal), V	220 AC
IP Rating	IP65
Ambient temperature range	ДПП (модель А): -20°С...+40°С (УХЛ4.1), ДПП (модель В): -30°С...+40°С (У3), ЛПП: +5°С...+35°С (УХЛ4.1)
Lamp Base Type	G23, 2G11
Light source	fluorescent compact lamp , fluorescent compact lamp with starter, LEDs
Power, W	8, 11, 15, 18, 24, 50

PRICE REQUEST Download catalog (~10,45Mb, PDF)

Description ADVANTAGES Source of light Installation Network connection Order example Specifications Download

DPP: source of light - energy efficient LEDs (more than 50 000 hours of continuous work), ecological harmless, don't need special recycling (without mercury), instant light on/light off, stable to change of voltage, multiple on/off, high colour rendering; no harmful effect of low-frequency pulses, no UV radiation;
high IP-requirements, anti-vandal;
weather-proof - long life cycle.

• LEDs (5000...6500K)
• compact fluorescent lamps with mounted starter unit КЛ11/ТБЦ-2 (Lisma), MASTER PL-S 11/840/2P (Philips)
• compact fluorescent lamps MASTER PL-L 18/840/4P, MASTER PL-L 24/840/4P (Philips) or the same ones.

Installation: on supporting surface using screws, threaded rods or bolts.

Network connection – individual cable Ø5...8mm (core section 1,5...2,5mm²).

VАТRА DPP05V-15-221 NF4.1 decoding of modification:
1 figure • design version:
1- common
2- anti-vandal

2 figure • network connection:
1- on top (individual) 2- on side (individual) 3- on side transit

3 figure •
1- LEDs
2- without lamps

Lighting fixture type	Rated voltage, V	Protection level	Source of light	Lamp holder	Light distribution curve	PFC	Dimensions, LxWxH, mm	Weight, kg ±10%
DPP05V-8-111 NF4.1	230 AC	ІР65	LED	-	cosine	0,95	385х155х90	2,5
DPP05V-8-121 NF4.1	230 AC	ІР65	LED	-	cosine	0,95	385х155х90	2,55
DPP05V-8-131 NF4.1	230 AC	ІР65	LED	-	cosine	0,95	385х155х90	2,6
DPP05V-8-211 NF4.1	230 AC	ІР65	LED	-	cosine	0,95	385х155х90	2,62
DPP05V-8-221 NF4.1	230 AC	ІР65	LED	-	cosine	0,95	385х155х90	2,67
DPP05V-8-231 NF4.1	230 AC	ІР65	LED	-	cosine	0,95	385х155х90	2,82
DPP05V-15-111 NF4.1	230 AC	ІР65	LED	-	cosine	0,95	385х155х90	2,4
DPP05V-15-121 NF4.1	230 AC	ІР65	LED	-	cosine	0,95	385х155х90	2,45
DPP05V-15-131 NF4.1	230 AC	ІР65	LED	-	cosine	0,95	385х155х90	2,5
DPP05V-15-211 NF4.1	230 AC	ІР65	LED	-	cosine	0,95	385х155х90	2,53
DPP05V-15-221 NF4.1	230 AC	ІР65	LED	-	cosine	0,95	385х155х90	2,58
DPP05V-15-231 NF4.1	230 AC	ІР65	LED	-	cosine	0,95	385х155х90	2,63
LPP05V-2х11-112 NF4.1	230 AC	ІР65	CFL	G23	cosine	0,5	385х155х90	2,5
LPP05V-2х11-122 NF4.1	230 AC	ІР65	CFL	G23	cosine	0,5	385х155х90	2,55
LPP05V-2х11-132 NF4.1	230 AC	ІР65	CFL	G23	cosine	0,5	385х155х90	2,6
LPP05V-2х11-212 NF4.1	230 AC	ІР65	CFL	G23	cosine	0,5	385х155х90	2,62
LPP05V-2х11-222 NF4.1	230 AC	ІР65	CFL	G23	cosine	0,5	385х155х90	2,67
LPP05V-2х11-232 NF4.1	230 AC	ІР65	CFL	G23	cosine	0,5	385х155х90	2,82
LPP05V-1х18-112 NF4.1	230 AC	ІР65	CFL	2G11	cosine	0,95	385х155х90	2,4
LPP05V-1х18-122 NF4.1	230 AC	ІР65	CFL	2G11	cosine	0,95	385х155х90	2,45
LPP05V-1х18-132 NF4.1	230 AC	ІР65	CFL	2G11	cosine	0,95	385х155х90	2,5
LPP05V-1х18-212 NF4.1	230 AC	ІР65	CFL	2G11	cosine	0,95	385х155х90	2,53
LPP05V-1х18-222 NF4.1	230 AC	ІР65	CFL	2G11	cosine	0,95	385х155х90	2,58
LPP05V-1х18-232 NF4.1	230 AC	ІР65	CFL	2G11	cosine	0,95	385х155х90	2,63
LPP05V-2х18-112 NF4.1	230 AC	ІР65	CFL	2G11	cosine	0,95	385х155х90	2,62
LPP05V-2х18-122 NF4.1	230 AC	ІР65	CFL	2G11	cosine	0,95	385х155х90	2,67
LPP05V-2х18-132 NF4.1	230 AC	ІР65	CFL	2G11	cosine	0,95	385х155х90	2,82
LPP05V-2х18-212 NF4.1	230 AC	ІР65	CFL	2G11	cosine	0,95	385х155х90	2,7
LPP05V-2х18-222 NF4.1	230 AC	ІР65	CFL	2G11	cosine	0,95	385х155х90	2,75
LPP05V-2х18-232 NF4.1	230 AC	ІР65	CFL	2G11	cosine	0,95	385х155х90	2,8
LPP05V-2х24-112 NF4.1	230 AC	ІР65	CFL	2G11	cosine	0,95	385х155х90	2,62
LPP05V-2х24-122 NF4.1	230 AC	ІР65	CFL	2G11	cosine	0,95	385х155х90	2,67
LPP05V-2х24-132 NF4.1	230 AC	ІР65	CFL	2G11	cosine	0,95	385х155х90	2,82
LPP05V-2х24-212 NF4.1	230 AC	ІР65	CFL	2G11	cosine	0,95	385х155х90	2,7
LPP05V-2х24-222 NF4.1	230 AC	ІР65	CFL	2G11	cosine	0,95	385х155х90	2,75
LPP05V-2х24-232 NF4.1	230 AC	ІР65	CFL	2G11	cosine	0,95	385х155х90	2,8

vatra-2018-ukr_dpp05v-lpp05v.pdf (PDF, ~ 0,10 Mb)
