Home Product catalog Indoor&Office Lighting DPP01-60, LPP01-2х20

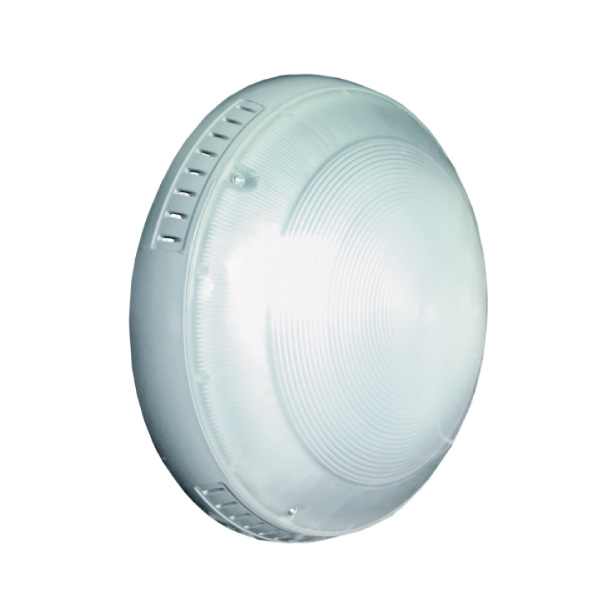

Lamp DPP01-60, LPP01-2х20

Name: Lamp DPP01-60, LPP01-2х20
Brand: Vatra
Price: 1 UAH
Availability: PreOrder

DPP01-60, LPP01-2х20

Lighting fixture is used for lighting industrial, agricultural, commercial, warehouse and other premises of hazardous areas of zone 22 and fire risk classes.

Technical specifications

Protection class IEC (DSTU ІЕС 60598-1:2002)	Safety class I
Hazardous Area Classification	П-I, П-II
Power Factor Correction (PFC)	ДПП: 0,9, ЛПП: 0,6
Correlated Color Temp (ССТ)	ДПП: 5000...8000К
Mech. impact protection code (GOST 30631-99)	М1
Input voltage (nominal), V	220 AC
IP Rating	IP65
Ambient temperature range	ДПП: -40°С...+40°С (У3), ЛПП: -20°С...+40°С (У3)
Lamp Base Type	E27
Light source	fluorescent compact lamp with ECG, LEDs
Power, W	20, 60

PRICE REQUEST Download catalog (~10,45Mb, PDF)

Description ADVANTAGES Installation Order example Specifications

Lighting fixture is used for lighting industrial, agricultural, commercial, warehouse and other premises of hazardous areas of zone 22 and fire risk classes.

DPP: source of light - energy efficient LEDs! more than 50 000 hours of continuous work, stable luminous flux, stable to change of voltage, multiple on/off, instant light on/light off, high colour rendering; no harmful effect of low-frequency pulses, don't need special recycling (without mercury), no UV radiation;
high IP-requirements, anti-vandal;
weather-proof - long life cycle.

Installation: on supporting surface using screws, threaded rods and bolts. Recommended installation height: 3...6m.
Network connection: individual cable Ø4,5...10mm (core section 1,5...4mm²).

VATRA DPP01-60-022 N3 decoding of modification:
1 figure •
0

2 figure •
0 - lamp holder Е27
2- without lamp holder

3 figure •
2- with power factor compensation

Lighting fixture type

Rated voltage, V

Protection level

Source of light

Nominal power, W

Luminous flux, lm

Lamp holder

PFC

Dimensions, DxH, mm

Weight, kg ±10%

DPP01-60-022 N3

230 AC

IP65

LED

7200

0,9

380x94

LPP01-2х20-002 N3

230 AC

IP65

CFL

2400

Е27

0,6

380x94
